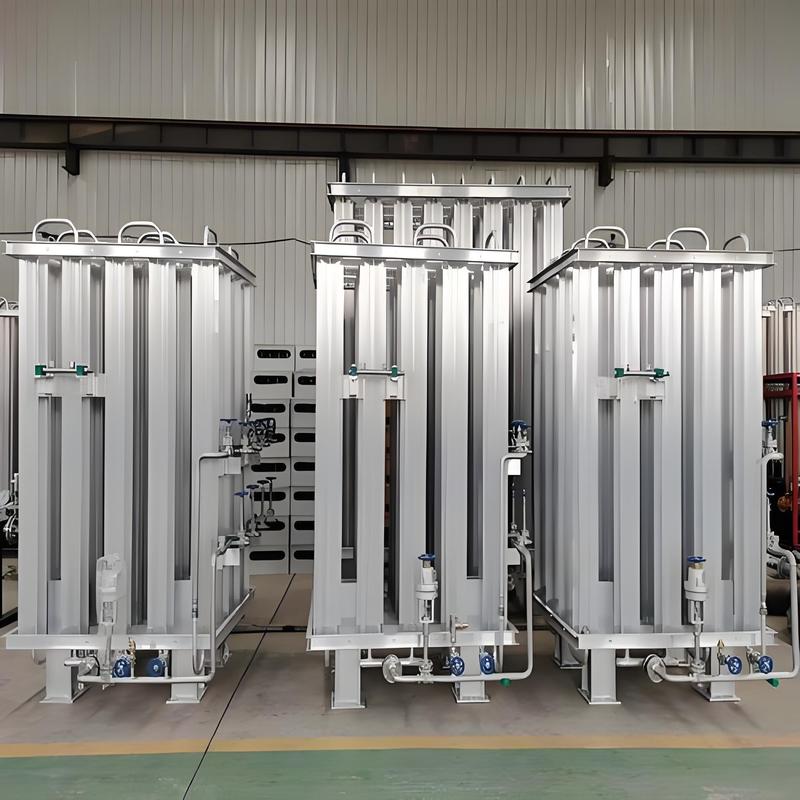

Ambient Air Vaporizer

An ambient air vaporizer is an energy-efficient device that utilizes natural convection of ambient air to vaporize cryogenic liquids. Its core principle involves direct heat exchange between aluminum alloy finned tubes and air, enabling the conversion of cryogenic liquids such as liquefied natural gas (LNG), liquid oxygen (LOX), and liquid nitrogen (LIN) into gaseous state without additional energy consumption, featuring both environmental friendliness and cost-effectiveness.

Core Features

Energy-Free Operation: Relies entirely on ambient air heat, with no consumption of electricity, steam, or other energy sources, resulting in zero operating costs.

High-Efficiency Heat Exchange: Adopts anti-rust aluminum alloy star-shaped finned tubes, equipped with built-in spiral guide strips and stainless steel wick technology. Heat transfer efficiency is 50%-200% higher than traditional designs. For example, ultra-large diameter (φ200mm) aluminum heat exchange tubes with internal fin structures significantly enhance heat conduction capacity.

Structural Optimization:

Stress Compensation: "Bridge"-type connecting components eliminate stress caused by thermal expansion and contraction.

Lightweight Design: High aluminum content reduces equipment weight by 30%-50% compared to traditional vaporizers.

Anti-corrosion Treatment: Surface anti-oxidation process extends service life, suitable for harsh environments.

Safety and Reliability:

Equipped with magnetic flap level gauges, remote alarm systems, and mechanical liquid overflow prevention devices for real-time operation monitoring.

Complies with international standards such as GB, ASME, and PED (CE); some models can be manufactured to electronic-grade standards.

Working Principle

Cryogenic liquid enters the finned tubes through the inlet and gradually vaporizes by absorbing heat from ambient air. The specific process includes:

Natural Convection: Air flows over the fin surface, transferring heat to the liquid inside the tubes through thermal conduction.

Phase Transition Enhancement: The built-in wick forms a liquid film using capillary action, while spiral guide strips make the liquid rise in a spiral manner, extending contact time and enhancing boiling effects.

Superheating Compensation: Independent superheating sections are installed in some models to ensure the outlet gas temperature remains within a safe range.

Application Fields

Energy Industry: Main vaporization equipment for LNG satellite stations and CNG filling stations. Multiple units can be paralleled to meet high-flow demands of 8,000-16,000 Nm³/h.

Industrial Gases: Vaporization supply of liquid oxygen, liquid nitrogen, and liquid argon, applicable to metallurgy, chemical engineering, electronics, and other fields.

Special Media: Custom models for liquid hydrogen and liquid helium use lined stainless steel tubes and ultra-low temperature materials (e.g., S31608), capable of withstanding extreme temperatures of -269℃ and high pressures of 100MPa.

Civil Gas Supply: Centralized gas supply systems for residential communities and commercial complexes, with a single-unit flow rate of 50-2,000 Nm³/h.

Key Parameters

Item	Conventional Range	Special Scenario Extension
Applicable Media	LNG, LPG, LOX, LIN, LCO₂, etc.	Liquid hydrogen, liquid helium (customizable)
Operating Pressure	0.1-25MPa	Up to 40MPa (high-pressure type)
Single-Unit Flow Rate	50-8,000 Nm³/h	Up to 16,000 Nm³/h (multiple parallel units)
Design Temperature	-196℃ (for LNG) to ambient temperature	-269℃ (for liquid helium)
Environmental Adaptability	-10℃~45℃, humidity ≤70%	Auxiliary heating required (ambient temperature ＜-5℃)

Technological Innovations and Challenges

Anti-icing Technology:

Vacuum-sealed boxes with built-in heaters prevent frost blockage at elbow joints.

Dual-unit switching operation or combination with water-bath heaters ensures stable gas supply in low-temperature environments.

Material Upgrades:

Finned tubes use 3A21 aluminum alloy with lined seamless stainless steel bright tubes, balancing thermal conductivity and corrosion resistance.

Liquid hydrogen/liquid helium models must pass over 200 cycles of extreme temperature impact tests.

Energy Efficiency Optimization:

Optimized fin spacing and arrangement reduce air flow resistance.

Intelligent control systems dynamically adjust air flow distribution, reducing pressure drop to 5%-10% of the design pressure.

Selection and Maintenance Recommendations

Selection Key Points:

Comprehensive evaluation based on medium characteristics (e.g., LNG requires -196℃ resistance), flow demands (8-12 hours of continuous operation), and environmental conditions (temperature, altitude).

Models with auxiliary heating are preferred for low-temperature areas; liquid hydrogen/liquid helium applications must comply with the T/CCGA 20018-2024 standard.

Maintenance Specifications:

Regularly inspect frost accumulation on fin surfaces; avoid frost covering over 20% of the heat exchange area.

Clean the inner wall of lined tubes quarterly to prevent impurities from affecting heat transfer efficiency.

Pressure testing should be conducted at intervals not exceeding 3 years, with focus on air tightness inspection of welds and flange connections.

With its advantages of high energy efficiency, safety, and reliability, the ambient air vaporizer has become a mainstream choice in the global energy and industrial sectors. As materials science and manufacturing processes advance, its application in complex scenarios such as ultra-low temperatures and high pressures will further expand, providing key support for the transition to green energy.
